Inconel Wire
Product Details
Inconel 625 wire is a premium nickel-chromium alloy known for its exceptional heat and corrosion resistance, making it a critical material in industries requiring high performance under extreme conditions. Due to its outstanding ability to withstand high temperatures and oxidative environments, Inconel 625 wire is widely used in aerospace applications, oil and gas extraction, and other industries where reliability and structural integrity are essential in harsh operating conditions.
The wire's unique composition, which includes nickel, chromium, and molybdenum, gives it superior strength and corrosion resistance in environments exposed to intense heat and pressure. It is commonly used in components such as turbine blades and exhaust systems, ensuring long-lasting performance even under the most extreme temperatures.
Item | Inconel 600 | Inconel 625 | Inconel 718 | Inconel X750 | Inconel 825 | |||
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Shape | Size (mm) |
Wire | 0.02-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
High Heat Resistance: Capable of withstanding extreme temperatures up to 1800°F (982°C), Inconel 625 maintains its strength and structural integrity.
Corrosion Resistance: The alloy’s excellent resistance to oxidation and corrosion makes it ideal for high-temperature environments exposed to aggressive gases and chemicals.
Superior Strength: Offers high tensile strength and fatigue resistance, ensuring long-lasting performance under extreme stress.
Excellent Weldability: Can be welded using conventional methods, making it suitable for a variety of industrial applications.
Versatility: Works well in both aeronautical and industrial applications, such as gas turbines, chemical reactors, and marine systems.
Inconel 625 wire is used in a variety of high-performance applications across several industries. These include:
Aerospace Engineering: Used in turbine blades, exhaust systems, and combustion chambers to withstand extreme temperatures and high mechanical stress.
Oil and Gas: Ideal for downhole tubing, pipeline systems, and components exposed to corrosion and high-pressure environments.
Nuclear Power Generation: Employed in reactor components such as fuel rods to resist radiation and thermal fatigue.
Chemical Processing: Used in heat exchangers and reactors where high temperatures and chemical exposure are common.
Marine Applications: Provides reliable performance in propeller shafts, valves, and marine exhaust systems due to its seawater resistance.
Power Generation: Used in gas turbines to convert fuel into energy efficiently and reliably.
Automotive Industry: Ensures durability in high-performance parts, especially in exhaust systems and turbochargers.
Pharmaceutical Manufacturing: Employed in equipment requiring both purity and corrosion resistance, such as reactors and stirrers.

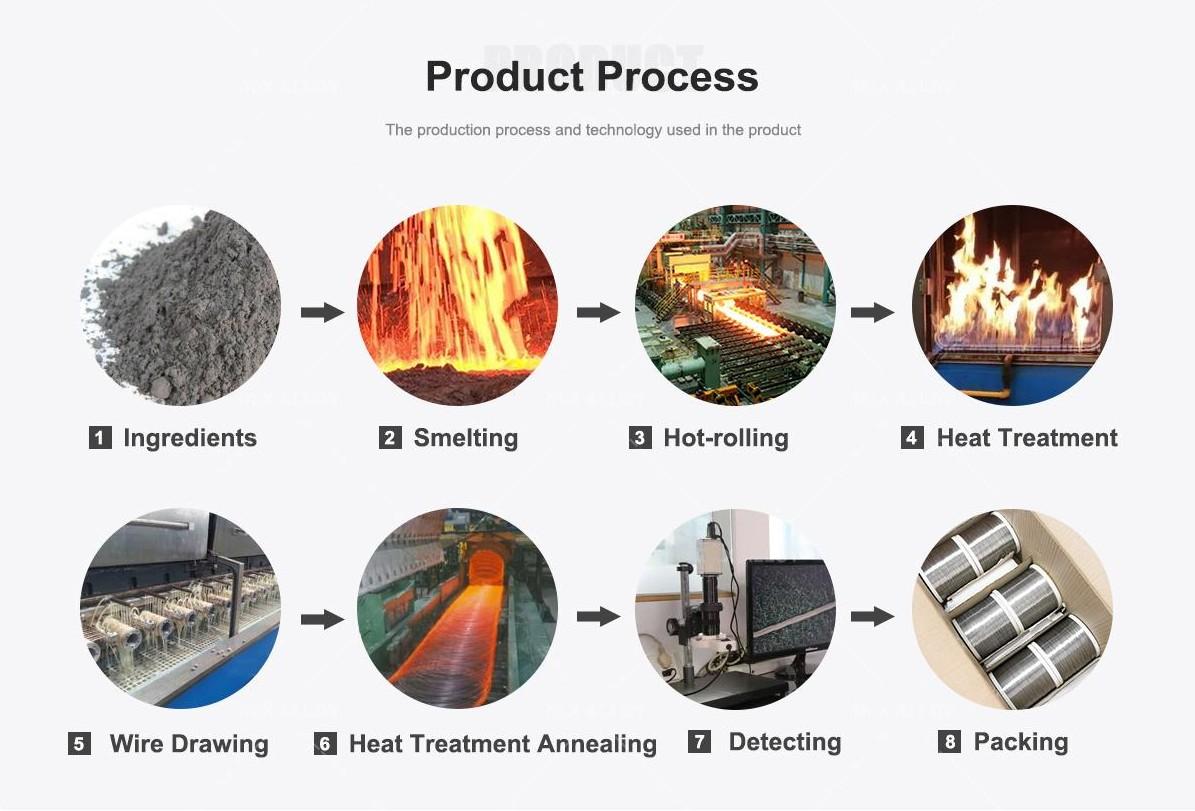

The manufacturing process of Inconel 625 wire involves several critical stages to ensure the alloy's superior properties:
Melting: The alloy is initially melted using high-temperature furnaces to ensure uniform composition and homogeneity.
Drawing: The molten alloy is then drawn into wire form, where it is cooled to the desired diameter and shape.
Heat Treatment: The wire is heat-treated to enhance its mechanical properties and ensure high strength and corrosion resistance.
Finishing: The wire is coated or finished according to the specific needs of the application, improving its performance in extreme conditions.
This multi-step process ensures that Inconel 625 wire meets the stringent requirements of industries that demand the highest levels of durability and performance.
Exceptional Performance in Harsh Environments: With superior heat resistance and corrosion resistance, Inconel 625 performs reliably in high-temperature, high-stress environments.
Long-Term Durability: The alloy’s ability to maintain its mechanical properties in extreme conditions ensures a long service life, even in the most demanding applications.
Versatility: Its wide range of applications across multiple industries—aerospace, oil and gas, chemical processing, and power generation—makes it a go-to material for many critical applications.
Enhanced Safety: By preventing material failure under high-pressure, high-temperature, and corrosive conditions, Inconel 625 contributes to the safety of critical components.
Reduced Maintenance Costs: Its resistance to wear, corrosion, and thermal damage helps minimize the need for frequent replacements, reducing long-term maintenance costs.
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, Precision Alloy , FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Q: What is Inconel 625 wire?
A: Inconel 625 wire is a nickel-chromium alloy that offers outstanding heat and corrosion resistance, making it ideal for applications that require performance in extreme conditions.
Q: What are the main applications of Inconel 625 wire?
A: Common applications include aerospace, oil and gas, chemical processing, nuclear power generation, and marine environments.
Q: How does Inconel 625 wire perform under extreme temperatures?
A: It can withstand temperatures up to 1800°F (982°C) while maintaining strength, ensuring reliability in high-heat environments such as turbine blades and exhaust systems.
Q: Is Inconel 625 wire easy to weld?
A: Yes, Inconel 625 wire is weldable using standard techniques such as TIG welding and MIG welding, making it adaptable for many manufacturing processes.
Q: What are your payment terms?
A: We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and PayPal.
Q: What is the lead time for sample orders?
A: The lead time for sample orders is typically 7 days after payment confirmation.
